Multi-Chip LED High Bay Lights

Products Introduction:

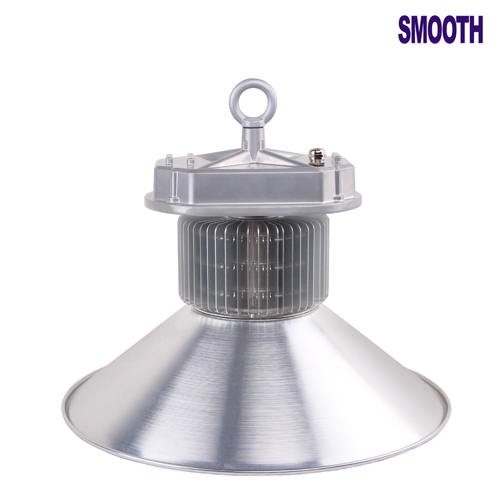

100W LED High Bay Lights
Model: SL-HB100W
Lighting Source:SMD
Chip Brand:Bridgelux/Epistar
LEDs Quantity:1 PC 100W
Power Consumption: 100W
Input Voltage (Driver): 85-265VAC /50-60HZ
Efficiency: ≥85%
PF: ≥0.92
Operation Temperature -40 ~ +50℃
Colors:Warm white CCT3000K,Natural white:CCT4000K,Cool white CCT6000K
Luminous: 12000lm (±5%)
Products Features:

1. Mercury-free, lead-free and energy efficiency illuminant, environmental friendly lamp.

2. Over 30% energy consumption saved comparing to high pressure sodium lamp.

3. Fin-type aluminum housing+coper pipe heat dissipation

4. Anodized aluminum reflector keeps the even and efficient lighting effect,

   and coordinates with the radiator, effecting a cooling system to ensure safe performance for long-hour working request.

5. High power Led illuminant provides comfortable light without radiation, flicker or UV

Model No                    Dimensions    Wattage  Input Voltage  Initial Lumens      CCT                Ra       Diffuser            Life Span
                                             (CM)               (W)              (V)                    (LM)                  (K)                             (Degree)               (Hrs)

SL-HB100W-CW           28*38               100           85~265             10500         5500~6000         80      45/90/120              50,000

SL-HB100W-NW           28*38               100           85~265             10000         5500~6000         80      45/90/120              50,000

SL-HB100W-WW           28*38               100           85~265             95000         5500~6000         80      45/90/120              50,000

100W LED high bay Dimensions:


100W LED high bay Diagram of degradation for Luminous


1The data above has been got at a temperature of 25 celsius degree and taking 1000 hours running by a nonstop way.

2Degradation of luminous flux of LED lamps depends on environmental conditions. The higher the temperature, the longer the using time, the faster luminous flux drops.

100W LED high bay Photomatric Data


100W LED high bay Packing



100W LED high bay Installing instructions


100W LED high bay Attentions:

1.Please use the correct power supply.
2. Please read the product installation manual carefully before using the products.

Application: Workshop, Factory buildings, Warehouses, Highway toll station, Gas stations, Supermarket..
